MGD1000 — Dew Point and/or Carbon Monoxide Monitor
Connecting compressed air to highly sensitive equipment that needs moisture control? The 3D Prototech Dew Point Monitor keeps track of the dew point and alerts you when it's too high, saving you from expensive equipment damage.
Heatless regenerative desiccant dryers provide some of the best dry air available, but the purge cycle uses a large amount of air. With the 3D Prototech Dew Point Monitor, you can control the dryer's purge based on system dew point, saving money on electricity and reducing wear on your compressors.
Key Features
- Dryer purge control
- Alarm, visual and remote connection via dry contact
- Dew point sensor with auto-calibration
- NIST traceable dew point sensor certification
- NFPA 99 compliant
- C/UL508A certified
- User customizable setting on site
- 4-20mA signal output for remote dew point monitoring
Documentation
- MGD1011-80-AO Spec — request a copy
- MGD1011 Operation Manual — request a copy
Configurations
MGD1011-80
Dew Point Monitor
MGD1021-80-50
Dew Point and CO Monitor
MGD1011-80-AO
Dew Point Monitor with Analogue Output
MGD1021-80-50-AO
Dew Point and CO Monitor with Analogue Output

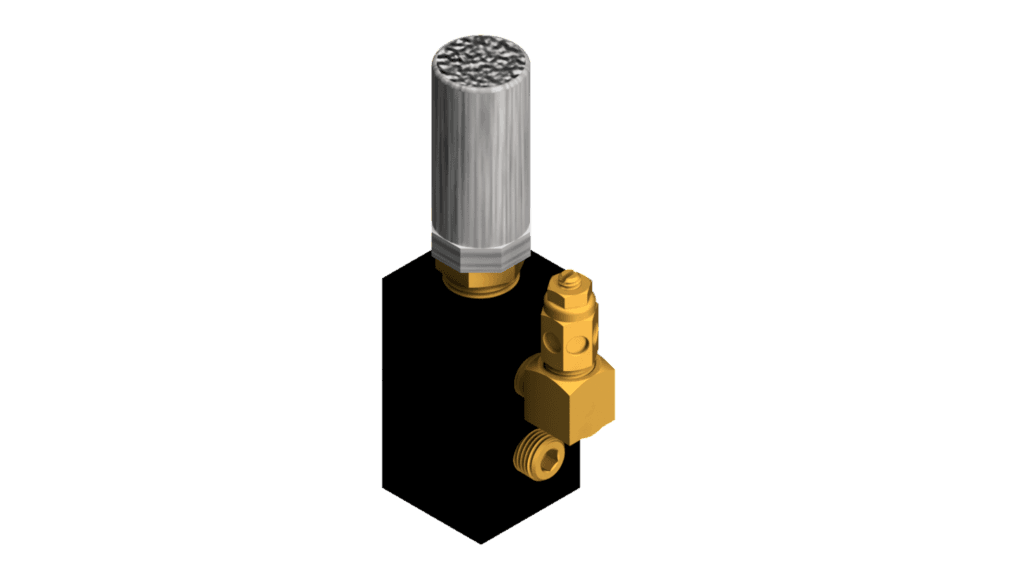

Sample Flow Assembly
Mounted to the side of the panel with flow muffler to allow sample air control.
CO Transmitter
Chemical electrical sensor providing a 4-20mA analogue signal.
