Industrial Equipment

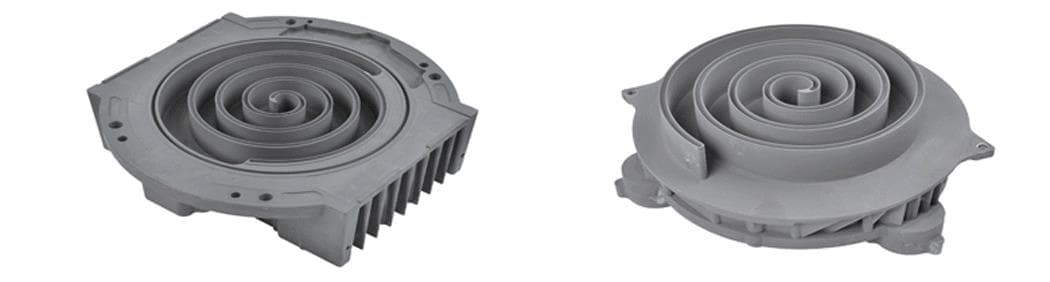

Scroll Air Compressor
Oil-less Clean Air Compressor — ATSB Series
The ATSB Series scroll oil-free basemount compressor delivers reliable, contaminate-free compressed air. Certified Class 0 oil-free air with fewer moving components increases reliability, and an integrated cooling fan keeps the compact design suited for OEM applications.
Key Features
- Certified Class 0 Oil Free Air
- Contaminate free air produced
- Less moving components and increased reliability
- Integrated cooling fan
- Compact design for OEM application
Documentation
- ATSB 030 Specification — request a copy
- ATSB 050/075 Specification — request a copy
Configurations
SC2.2

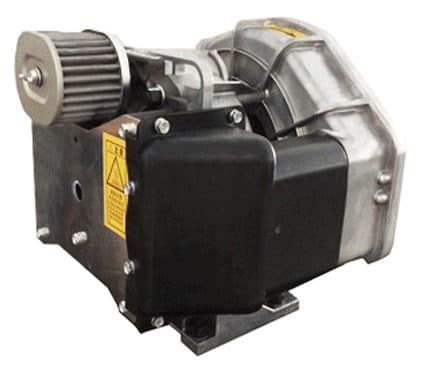

Oil-less scroll compressor, 3HP head.
SC5.5

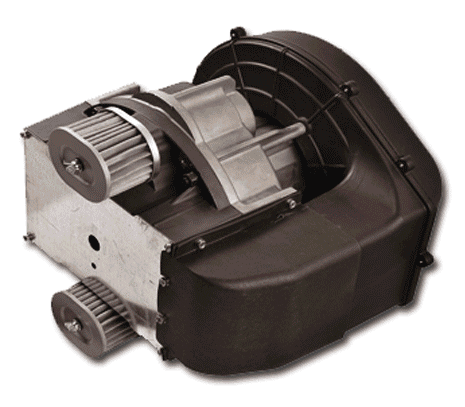

Oil-less scroll compressor, 5HP and 7.5HP head.
ATSB Series Models
| Model | Horsepower | Max Pressure | Flow Rate |
|---|---|---|---|
| ATSB-030 | 3HP | 120 PSI | 8.5 CFM |
| ATSB-050 | 5HP | 120 PSI | 14 CFM |
| ATSB-075 | 7.5HP | 120 PSI | 24 CFM |
| ATSB-076 | 7.5HP | 145 PSI | 16 CFM |
